[Rainwater Storage Tanks]
Storage Tanks Built for Texas Rainfall Patterns and Climate Conditions
Rainwater storage tanks are the backbone of any collection system they hold harvested water between rain events, protect it from contamination, and maintain supply during seasonal dry periods. For Texas properties where wells are unreliable, municipal water is expensive, or water independence matters, proper tank selection and sizing determines whether your rainwater system works year-round or runs dry when you need it most.
What You Need to Know:
Tank sizing based on your roof collection area, local rainfall patterns, and household consumption
Material options (steel, polyethylene, fiberglass) with different cost and performance trade-offs
Above-ground vs. below-ground installation considerations
Integration with filtration, pumps, and treatment systems
Why Generic Tank Recommendations Don't Work in Texas
If you’re researching rainwater storage tanks, you’ve probably encountered conflicting information: some sources recommend enormous tanks (50,000+ gallons) that cost more than your entire budget, others suggest small tanks (5,000 gallons) that would run dry between storms, and most don’t account for Central Texas rainfall distribution patterns at all.
The second problem: treating tanks as standalone products rather than components in complete systems. A tank without proper inflow (gutters, first-flush, conveyance), outflow (pumps, pressure management), and treatment (filtration, UV) is just an expensive water container — not a functional water supply.
Under-sizing
Tanks too small for drought reserve between rain events, forcing you to ration water or rely on backup sources more often than expected
Over-sizing
Tanks larger than your roof can fill, wasting money on storage capacity you’ll never use
Wrong climate assumptions
Systems designed for Pacific Northwest rainfall (frequent, year-round) fail in Texas (seasonal, concentrated in spring/fall)
Material mismatches
Choosing tank materials based on price alone without considering Texas heat, freeze risk, or installation constraints
The tank is critical, but it’s one piece of an integrated system. Getting the sizing and specifications right requires understanding how all components work together in your specific conditions.
How Storage Tanks Fit Into Complete Rainwater Systems
A rainwater storage tank serves three functions in a complete harvesting system:
01
Volume Reserve
Holds enough water for 2-4 months during dry spells. In Central Texas, spring rains may not arrive until late April, and summer storms are unpredictable.
02
Pressure Source
Houses the submersible pump that delivers water at household pressure (50-60 PSI) to all fixtures. The tank provides stable water level for consistent pump operation regardless of rainfall timing.
03
Quality Protection
Keeps filtered water protected from contamination, temperature extremes, sunlight (which promotes algae growth), and evaporation. Properly sealed tanks maintain water quality between collection and use.
Tank Selection Factors:
- Capacity Based on roof collection potential and consumption patterns
- Material Steel, polyethylene, or fiberglass depending on budget, site conditions, and longevity priorities
- Configuration Above-ground (easier installation, visible), below-ground (no visual impact, more stable temperature), or hybrid
- Location Positioned for gravity-fed collection, pump access, and maintenance
Getting these factors right requires site-specific calculations, not generic recommendations.
How to Determine Actual Storage Capacity You Need
Tank sizing requires balancing three variables: collection capacity, consumption rate, and desired drought reserve.
01
Calculate Annual Collection Capacity
- Roof square footage × 0.62 × annual rainfall inches = gallons you can collect per year
- Example: 2,000 sq ft roof in area with 32 inches annual rainfall: 2,000 × 0.62 × 32 = 39,680 gallons per year
(The 0.62 factor accounts for ~10% loss from first-flush diversion, evaporation, and system inefficiency)
02
Calculate Annual Consumption
- Avg household: 40-60 gallons per person daily.
- Example: 3-person household at 100 gallons/person/day: 3 × 100 × 365 = 109,500 gallons per year
In this example, your roof can only collect 36% of your annual consumption. You’d need either:
- Additional roof collection area (barn, shop, garage)
- Reduced consumption through conservation
- Supplemental source (well, hauled water) for portion of demand
03
Size Storage for Drought Reserve
- Storage should hold 2-4 months of reserve.
-
Eg. 3-person household using 300 gallons/day:
- 2 months reserve: 18,000 gallons
- 3 months reserve: 27,000 gallons
- 4 months reserve: 36,000 gallons
More storage aids drought resilience but costs more. The balance depends on:
- Rainfall distribution,
- Tolerance for managing water use,
- Cost of backup water sources.
Central Texas Recommendation: For households where rainwater is the primary source, we typically recommend 3-month reserve (90 days consumption) as the minimum. This covers typical seasonal dry periods without requiring extreme conservation or frequent backup water purchases.
For households using rainwater as supplemental source (well or municipal backup available), 1-2 month reserve may be adequate since backup can fill gaps during extended drought.
Comparing Material Trade-Offs

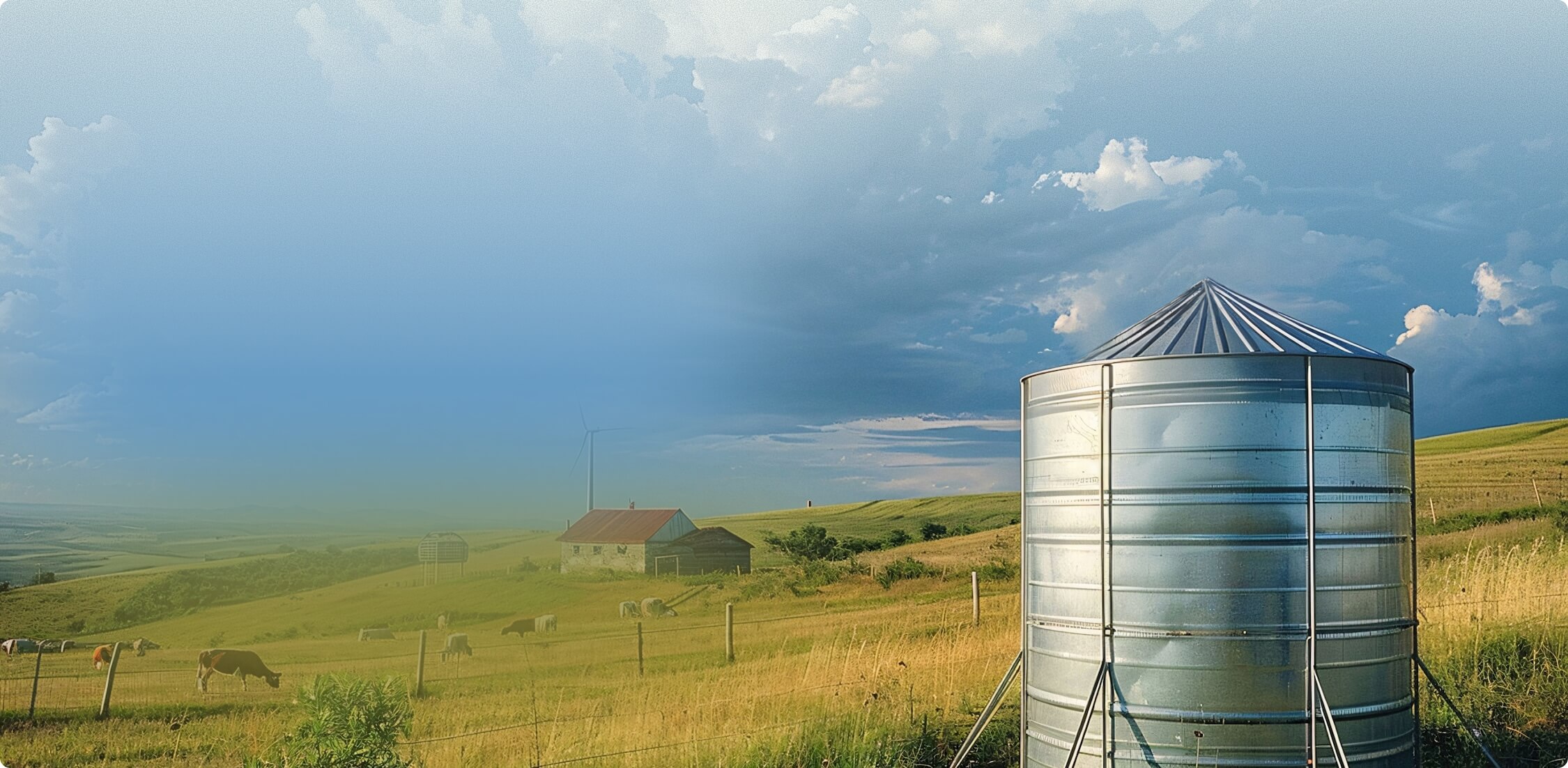

Steel Tanks
(Corrugated Metal with FDA-Approved Liner)
Advantages
- Long lifespan: 40-50+ years with proper coating and liner
- High strength: can be installed on steeper slopes or less-perfect foundations
- Large capacity options: readily available in 10,000-75,000+ gallon sizes
- Repairable: liners can be replaced if damaged, extending tank life
Disadvantages
- Higher cost: typically 30-50% more expensive than equivalent polyethylene
- Requires liner: water never touches bare metal; liner must be food-grade and maintained
- Heavier: requires stronger foundation and more substantial site preparation
- Temperature transfer: metal conducts heat, so water temperature fluctuates more with ambient conditions (less of an issue for above-ground tanks in Texas heat)
Best For: Properties prioritizing longevity, large storage capacity (30,000+ gallons), or locations where tank durability matters more than initial cost.
Polyethylene Tanks
(Plastic)
Advantages
- Lower cost: 30-50% less expensive than equivalent steel tanks
- Lightweight: easier installation, less foundation requirement
- No liner needed: one-piece construction, no maintenance of internal coating
- Inherently UV-resistant: if designed for above-ground use
- No corrosion: never rusts or corrodes
Disadvantages
- Shorter lifespan: 25-35 years typical (still substantial, but less than steel)
- Size limitations: most manufacturers top out around 30,000 gallons for single tanks
- Temperature sensitivity: plastic expands/contracts with temperature changes
- Not repairable: if punctured or damaged, entire tank must be replaced
Best For: Budget-conscious installations, smaller systems (10,000-30,000 gallons), or sites where installation ease matters more than maximum longevity.
Fiberglass Tanks
Advantages
- Excellent longevity: 40-50+ years
- Lightweight relative to capacity
- No corrosion or liner maintenance
- Good temperature stability
Disadvantages
- Highest cost: typically most expensive option per gallon
- Limited availability in very large sizes
- Can crack if improperly supported or impacted
- Less common in Texas market (fewer local suppliers)
Best For: Specialized applications where weight, longevity, and chemical resistance all matter, or where budget allows for premium option.
Our Recommendation for Central Texas:
For longevity priority
Steel with liner (will outlast your ownership period)
For budget priority
Polyethylene (delivers 25-35 years at lower initial cost)
For very large systems (40,000+ gallons)
Steel (more size options, better structural capacity)
For longevity priority
Polyethylene (cost-effective, proven performance)
[Above-Ground vs. Below-Ground Installation]
Configuration Trade-Offs
Above-Ground Tanks
|
Below-Ground Tanks
|
|
|---|---|---|
| Installation Cost | Lower cost, minimal excavation | Higher cost due to excavation and backfill |
| Maintenance Access | Easy access for inspection and repairs | More complex, confined-space access |
| Pump Performance | Better gravity-fed intake | Requires submersible pumps |
| Leak Detection | Immediate and visible | Harder to detect and locate |
| Temperature Stability | Affected by ambient temperature | Naturally insulated by ground |
| Visual Impact | Visible on property | Completely hidden |
| Space Usage | Uses above-ground footprint | No visible footprint, land reusable |
| Expansion | Simple to add parallel tanks | Difficult and costly to expand |
| Installation Needs | Level gravel base, good drainage | Excavation, engineered backfill |
| Best For | Cost-efficient residential systems | Aesthetic-driven or regulated sites |
Future Expansion Consideration: If you might add storage capacity later, position first tank where additional tanks can be installed in parallel (shared piping, same elevation) without re-plumbing entire system.
Tank Location and Site Requirements
Positioning Tanks for Optimal System Performance
When and How to Use Multiple Tanks
Parallel Configuration
(Most Common)
Multiple tanks connected at same elevation with shared inlet and outlet. Total capacity is additive.
Example: Three 10,000-gallon tanks = 30,000 gallons total capacity
Advantages
- Easy expansion: add tanks as budget allows or needs increase
- Redundancy: if one tank needs maintenance or develops leak, others continue operating
- Large capacity options: readily available in 10,000-75,000+ gallon sizes
Installation
- Tanks must be at same elevation (within 6 inches) for proper water balancing
- Shared piping must be sized for combined flow
- Overflow management for all tanks
Series Configuration
(Less Common)
Tanks positioned at different elevations, water flows through first tank before entering second.
Advantages
- Can work with sloped sites where level platform is difficult
- First tank serves as additional settling/filtration stage
Disadvantages
- More complex plumbing
- Lower effective capacity (must account for elevation differences)
- Harder to balance and maintain
Separate Systems
Multiple independent tank systems serving different purposes (household water + irrigation + fire protection)
Advantages
- Different water quality standards for different uses
- Easier code compliance for fire protection
- Prevents irrigation from depleting household supply
Disadvantages
- Higher total cost (duplicate pumps, filters, controls)
- More complex property layout
- More maintenance points
How Tanks Connect to Complete Systems
We design all tanks as integrated systems, not standalone components every tank we install includes proper inflow management, outflow delivery, and maintenance access points.
A storage tank by itself doesn’t deliver usable water, it’s the central component in a system that includes:
Inflow
Collection Side
- Gutter downspouts feed conveyance pipes into a first-flush system
- First-flush system removes initial roof debris and contaminants
- Tank inlet sized for heavy rainfall (typically 4–6 inches)
- Inlet screen or filter blocks large debris before entry
- Overflow pipe safely diverts excess water away from the foundation
Outflow
Delivery Side
- Submersible pump draws water from inside the tank
- Pump intake positioned 6–12 inches above tank bottom to avoid sediment
- Water flows through pressure line, filters, and UV treatment
- Pump sized for household demand (typically 10–15 GPM)
- Check valve prevents backflow when the pump shuts off
Monitoring and Controls
- Tank level sensor (visual gauge or electronic monitoring)
- Pump pressure switch (starts/stops pump based on demand)
- Low-water cutoff (protects pump if tank runs dry)
- Optional: automated alerts for low tank level, pump failure, or filter maintenance
Maintenance Access Points
- Large access hatch for periodic tank interior inspection and cleaning
- Drain valve at tank bottom for full drainage (every 3-5 years)
- Sample tap for water quality testing
[Long-Term Tank Maintenance]
What's Actually Required to Keep Tanks Functional
Annual Inspections
Owner or Service Provider
Routine checks help catch issues early and keep the system operating reliably.
- Check tank level and water clarity
- Inspect exterior for damage, rust, or deterioration
- Verify overflow and venting are clear
- Inspect conveyance pipes and inlet screens
- 30-60 minutes Cost: DIY free, or $150-300 if professional inspection
Tank Cleaning
Every 3-5 Years
Sediment builds up in tanks despite first-flush systems. Regular cleaning ensures capacity and quality.
- Drain tank completely
- Rinse interior to remove sediment
- Inspect liner or interior coating for damage
- Refill and sanitize
- 4-8 hours Cost: DIY $100-200 (water for refill), or $400-800 professional service
Filter and Treatment Maintenance
$20-60 per filter
Regular filter and UV maintenance ensures consistent water quality and system performance.
- Sediment and carbon filter replacement: 2-4 times per year ($20-60 per filter)
- UV bulb replacement: Annually ($80-120)
Liner Replacement
Steel Tanks, Every 15-25 Years
If liner becomes damaged or deteriorated, it can be replaced without replacing entire tank.
- Cost: $3,000-8,000 depending on tank size
- It's cheaper than new installation and extends tank life 15-25 years.
Why Choose Rainwater Specialists
What Makes Our Tank Systems Different
We Size for Texas Rainfall, Not Generic Formulas Our tank sizing accounts for Central Texas rainfall distribution patterns — where you get most rain in spring and fall, with extended dry periods in summer and winter. Systems sized for consistent year-round rainfall (common in generic sizing guides) fail here.
We Design Complete Systems, Not Just Tank Sales Every tank we install includes proper inflow management (first-flush, conveyance), outflow delivery (pump, pressure), and maintenance access. We don't sell tanks as standalone products — we integrate them into functional water supply systems.
We Match Materials to Application and Budget We carry both steel and polyethylene tanks, and we help you choose based on your actual priorities (longevity vs. cost vs. installation constraints) rather than pushing one material we happen to stock.
We Handle All Site Work and Permitting Foundation preparation, excavation (if below-ground), plumbing connections, electrical work, and permit coordination — we manage the complete installation, not just the tank delivery.
Frequently Asked Questions
Can I start with a smaller tank and add more later?
Yes, if initial installation is designed for expansion. Tanks installed in parallel (same elevation, shared piping) can be added later without re-plumbing the entire system. This is one advantage of multiple smaller tanks vs. one very large tank — you can scale up as budget allows or needs increase.
When we install initial tanks, we design inflow and outflow piping sized for future expansion, and position tanks where additional units can be added without moving existing equipment.
Do tanks require a concrete pad?
Not necessarily. Tanks require a level, compacted base that won’t settle over time, but this can be:}
- Compacted crushed rock or gravel (most common, adequate for most installations)
- Engineered fill with proper compaction
- Concrete pad (more expensive but provides perfect level surface)
We recommend concrete pads for:
- Very large tanks (40,000+ gallons) where weight concentration is extreme
- Sites with poor soil drainage or stability
- Below-ground installations requiring structural support
For typical residential above-ground tanks (10,000-30,000 gallons), a well-compacted gravel base is adequate and costs less than concrete.
How do I know if my tank is full?
Tanks include visual level indicators (sight glass or graduated gauge on exterior) showing current water level. For more precise monitoring, electronic sensors can provide exact gallon measurements and integrate with smartphone apps for remote monitoring.
Overflow pipes automatically divert excess water once tank reaches capacity, preventing overfilling regardless of monitoring.
What happens if the tank runs completely dry?
The pump’s low-water cutoff prevents it from running dry (which would damage the pump). When tank level drops below the cutoff point, the pump shuts off automatically and won’t restart until water level rises above minimum threshold.
You’ll lose water pressure throughout the house (no water at taps), but the system doesn’t damage itself. Once rainfall refills the tank above the cutoff level, the pump resumes normal operation automatically.
This is why proper tank sizing with adequate drought reserve matters — you want enough storage to bridge typical dry periods without hitting empty.
Can I connect my tank to municipal water for automatic backup?
Yes, but this requires backflow prevention devices to prevent rainwater from entering municipal supply (required by code). A float valve can automatically refill your tank from municipal or well source when rainwater level drops below a set point.
This configuration works well for:
- Properties using rainwater as primary source with municipal backup for drought
- Systems where irrigation uses rainwater but household has municipal connection
- New properties transitioning from municipal to rainwater gradually
We design automatic backup connections that comply with cross-connection control requirements.
Do tanks need to be emptied in winter?
No. Tanks remain full year-round in Texas. Water inside tanks (especially larger volumes) rarely freezes completely even during hard freezes — the thermal mass and ground insulation protect them. Exposed pipes and pump connections require freeze protection (insulation, heat tape, or burial below freeze line), but tanks themselves stay operational through winter.
How much does tank installation cost beyond the tank itself?
Tank installation costs vary by site complexity, but expect:
- Site preparation and foundation: $1,500-4,000 (above-ground), $5,000-15,000 (below-ground)
- Plumbing and conveyance: $1,000-3,000
- Electrical for pump: $500-1,500
- Permits and inspections: $200-800
Total installed cost typically runs 40-70% above tank purchase price. For example, a $8,000 tank might cost $12,000-14,000 fully installed.
This is why complete system quotes matter more than tank-only pricing — the installation cost is substantial and varies based on site-specific factors.
[Collection Should Be Easy]
Get a Tank System Designed for Your Specific Property
Generic tank recommendations don’t account for your roof size, local rainfall patterns, consumption needs, or site conditions. We’ll assess your property, calculate collection potential and storage requirements, and design a tank system sized for reliable year-round operation in Central Texas conditions.
Call us now! (512) 677-7246
